Inquiry Now
linear-inground-light-ys305h9b
Utilizes high-efficiency LED chips with up to 70lm/W luminous efficacy, offering energy savings with brightness.Adjustable option offer the flexible solution for your project Max make 80w per meter
Description

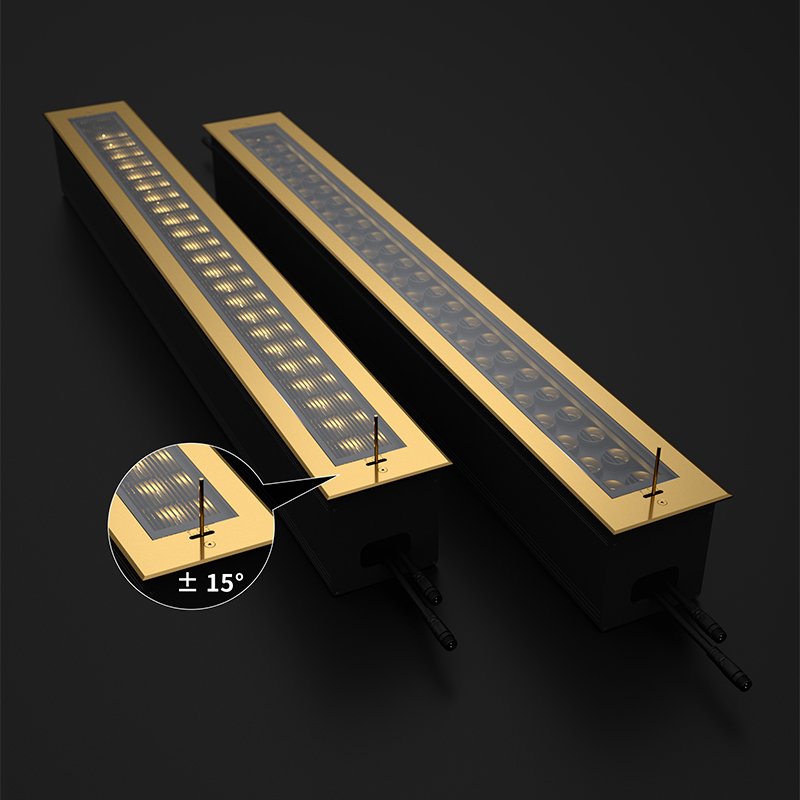

A high output linear inground that combines technology and performance in a stylish linear form factor with a ± 15° tilt adjustment. Packed with features including visual comfort and thermal management technologies. Available in a range of lengths,enables the luminaire to be installed in multiple orientations including continuous linear. Available in white, colour changing and tunable white light engines.
| SPECIFICATION | |
| Power | Max 80w per meter. Such as 80w 72w 60w per meter as options |
| Input Voltage | AC100-240V DC24V (DC48V upon request) |
| CCT | Monochromatic (W R G B A Y) / RGB / RGBW / RGBA (Optional) |
| Beam Angle | 8°/15°/30°/45°/60°/10*40°/20*60°/Asymmetric |
| Efficacy | 70lm/w for white color. 30lm/w for RGB color |
| CRI | Ra≥80 |
| Control Mode | ON/OFF DMX DALI CASAMBI |
| Operating Temp. | -20 to 50°C |
| Storage Temp. | -20 to 60°C ( Device must reach start-up temperature value before operating) |
| IP Rating | IP67, Wet location rated |
| IK Rating | IK09 |
| Certification | CE / ROHS |
| Warranty | 3 Years |
