direct-view-linear-light-ys7c26
Offering advanced pixel-level control via RGB / RGBW / Pixel RGB, this fixture supports integration with DMX / DALI / CASAMBI lighting protocols for dynamic color-changing effects, such as chasing, flowing gradients, and animations.
Description

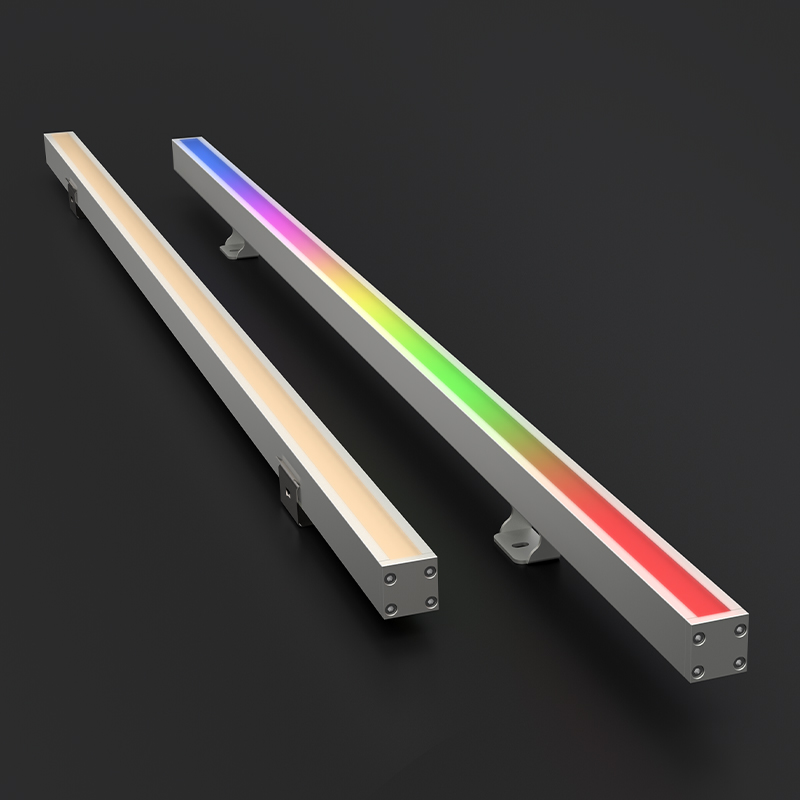

This linear light features a surface potting design that aligns perfectly with the aluminum housing, creating a balanced and seamless profile. Combining the rigidity of aluminum with the flexibility of the potted material, it achieves a
refined balance of strength and softness. The semi-transparent potting enhances color mixing, delivering clearer, more luminous light with greater depth and texture. Completed with a minimalist design, it presents a high-end, modern aesthetic.
| SPECIFICATION | |
| Power | 8W\10W\12W\15W |
| Lumen Output | 280lm/350lm/420lm/525lm |
| Input Voltage | DC24V |
| Beam Angle | 120° |
| Efficacy | 80-85lm/w for white color. 35-40lm/w for RGB color |
| CRI | Ra≥80 |
| CCT | Monochromatic (W R G B A Y) / RGB / RGBW / RGBA (Optional) |
| Control Mode | ON/OFF DMX RDM |
| Operating Temp. | -20 to 50°C |
| Storage Temp. | -20 to 60°C ( Device must reach start-up temperature value before operating) |
| IP Rating | IP66, Wet location rated |
| IK Rating | IK08 |
| Certification | CE / ROHS |
| Warranty | 3 Years |
