Description

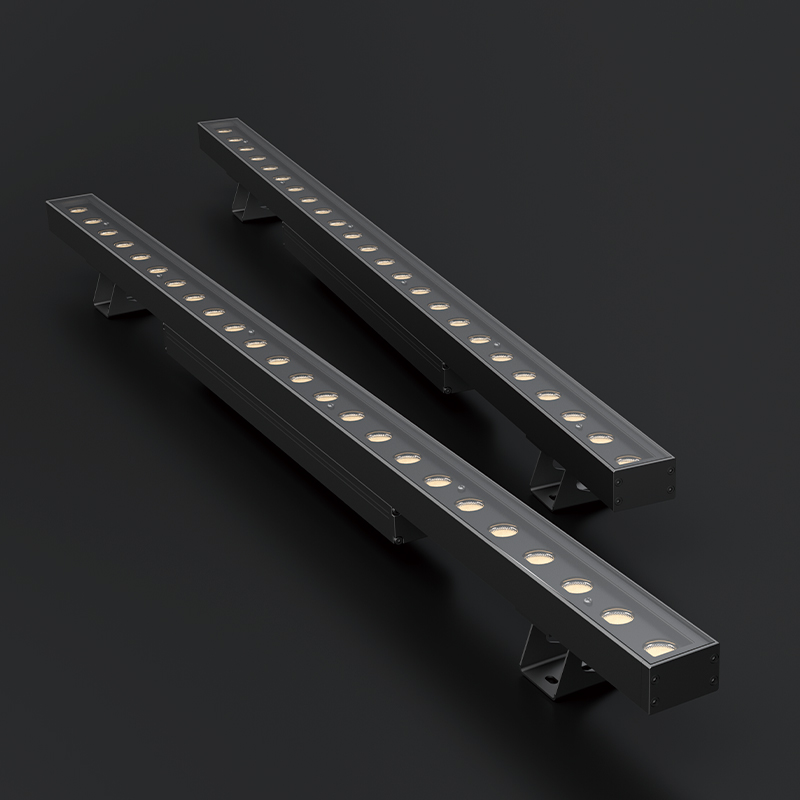

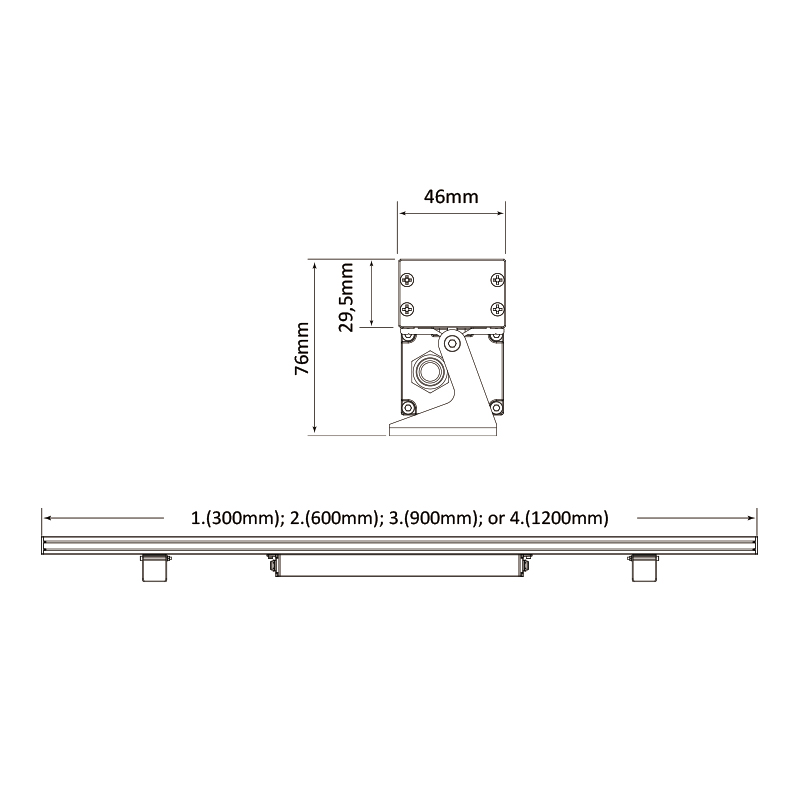

The linear wall graze is a high-performance linear LED luminaire for grazing or floodlighting exterior walls and facades. Featuring second-generation LED technology, the exterior linear luminaire is designed to highlight architectural features ranging from surface textures and molding details to archways and windows. The luminaire is available in 30cm, 60cm, 90cm or120cm sections, and can be configured with a wide number of options, including optics for grazing or floodlighting; various color temperatures or static colors; various mounting options, finishes, accessories, and controls. providing exceptional uniformity and brightness for walls and signage.
| SPECIFICATION | |
| Power | Max 48w per meter. Such as 48w 40w 36w 30w per meter as options |
| Input Voltage | AC100-240V DC24V (DC48V upon request) |
| CCT | Monochromatic (W R G B A Y) / RGB / RGBW / RGBA (Optional) |
| Beam Angle | 8°/15°/30°/45°/60°/10*40°/20*60°/Asymmetric |
| Efficacy | 80-85lm/w for white color. 35-40lm/w for RGB color |
| CRI | Ra≥80 |
| Control Mode | ON/OFF / DMX DALI / CASAMBI (Optional) |
| Operating Temp. | -20 to 50°C |
| Storage Temp. | -20 to 60°C ( Device must reach start-up temperature value before operating) |
| IP Rating | IP66, Wet location rated |
| IK Rating | IK08 |
| Certification | CE / ROHS |
| Warranty | 3 Years |
