Inquiry Now

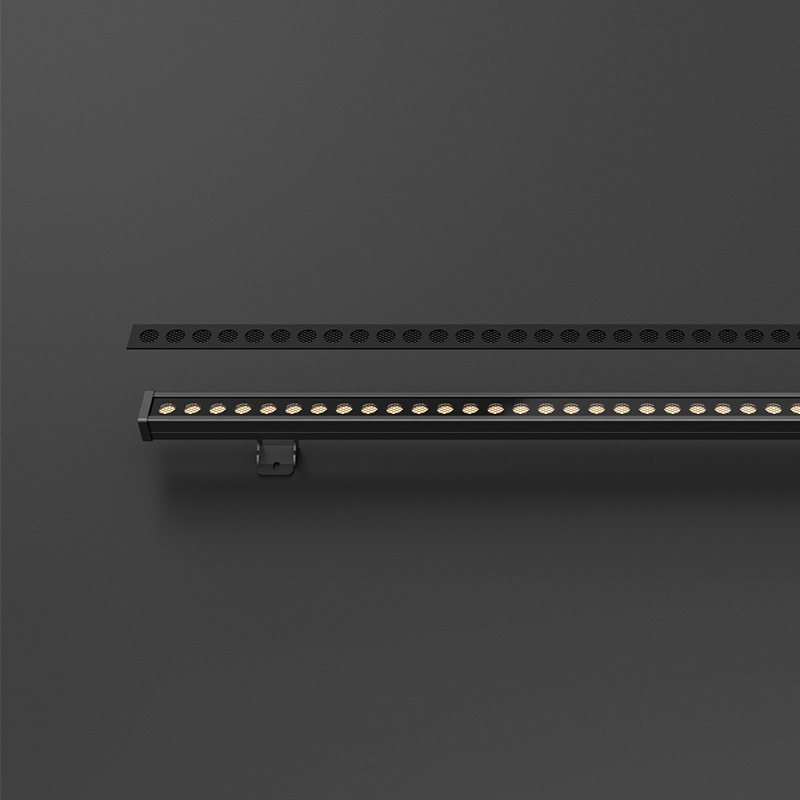

wall-washer-light-ys112
Max 48W High-Brightness Outdoor Linear Light with Multiple Control Options, it delivers precise lighting for a wide range of applications.
Description
Equipped with advanced control compatibility including DMX, DALI, and CASAMBI, YS112 supports vibrant dynamic effects such as color changing, chasing, and gradual fades. With a variety of beam angles and wattages, it delivers precise lighting for a wide range of applications. Is a powerful and versatile linear lighting solution designed for large-scale outdoor architectural lighting.
| SPECIFICATION | |
| Power | Max 48w per meter. Such as 48w 40w 36w 30w per meter as options |
| Input Voltage | AC100-240V DC24V (DC48V upon request) |
| CCT | Monochromatic (W R G B A Y) / RGB / RGBW / RGBA (Optional) |
| Beam Angle | 8°/15°/30°/45°/60°/10*40°/20*60°/Asymmetric |
| Efficacy | 80-85lm/w for white color. 35-40lm/w for RGB color |
| CRI | Ra≥80 (Optional Ra≥90) |
| Control Mode | ON/OFF / DMX DALI / CASAMBI (Optional) |
| Operating Temp. | -20 to 50°C |
| Storage Temp. | -20 to 60°C ( Device must reach start-up temperature value before operating) |
| IP Rating | IP66, Wet location rated |
| IK Rating | IK08 |
| Certification | CE / ROHS |
| Warranty | 3 Years |
